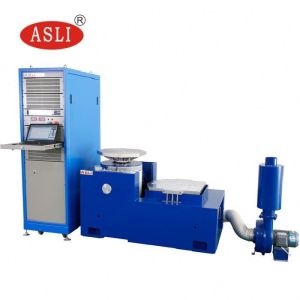

Vibration Testing Machine with JIS D1601 Standard 20KN Vibration Force and 100g Acceleration for Packaged Product Testing

Brand Name : ASLI

Place of Origin : Guangdong, China

Model Number : ES-20

MOQ : 1

Price : $26,890

Vibration direction : vertical vibration

Vibration force : 20KN

Control method : computer control

Acceleration : 100g

Frequency range : 3~3500Hz

Moving coil weight : 30kg

Rated sine force : 10000N

Rated acceleration : 1000 m/s2

Rated speed : 1.8 m/s

Rated displacement : 70 mm

Max loading : 270 kg

Moving coil dimension : Φ240 mm

Power type : Electronic

Static stiffness : Large

Dynamic stiffness : Small

Contact Now

Product Description
Vibration Tester Equipment With Jis D1601 Standard is mainly used for product vibration and shock environmental test environment, environmental stress screening test, reliability test, tests may be needed to do for aerospace, communications, electronics, electrical, communications, home appliances and other areas of the products. It is a test platform that meets all kinds of test specifications, and can be executed including IEC, MIL-STD, JIS, ASTM and other specifications.
Vibration Testing Machine with JIS D1601 Standard 20KN Vibration Force and 100g Acceleration for Packaged Product Testing
Specification
Model
ES-10
ES-20
ES-30
ES-40
Rated Sine
Force (N)
10000
20000
30000
40000
Frequency
Range (Hz)
3-3000
3-3000
3-2800
3-2800
Rated Acceleration (m/s2)
1000
1000
1000
1000
Rated Speed (m/s)
1.8
1.8
1.8
1.8
Rated displacement
(p-p) mm
70
80
11100
100
Max. Loading (Kg)
270
300
450
500
moving coil(Kg)
14
30
40
50
Dimension of
Moving coil (mm)
Φ240
Φ320
Φ450
Φ450
Product features
* Flexible suspension system and straight line guide, strong bearing capacity, good guidance performance and high stability.
* The static stiffness of the central load airbag is large, the dynamic stiffness is small, the bearing capacity is strong, and
the dynamic performance is excellent.
* Rapid self-examination diagnosis and chain protection, high safety and reliability;
* The air bag isolating and damping device makes the vibrator do not need the special foundation, perfectly reproduces the vibration wave and reduces the vibration transmission.
* Provide different use of horizontal and vertical expansion platforms;
* It can be used with all kinds of vibration controllers, and the operation is simple.

horizontal stand features:
Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.
Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.
Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
Built-in oil pump, good structure and easy operating.
Vibration Testing Machine with JIS D1601 Standard 20KN Vibration Force and 100g Acceleration for Packaged Product Testing
Vibration Testing Machine with JIS D1601 Standard 20KN Vibration Force and 100g Acceleration for Packaged Product Testing
Packing & Delivery
Vibration Testing Machine with JIS D1601 Standard 20KN Vibration Force and 100g Acceleration for Packaged Product Testing
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Vibration Testing Machine with JIS D1601 Standard 20KN Vibration Force and 100g Acceleration for Packaged Product Testing
Vibration Testing Machine with JIS D1601 Standard 20KN Vibration Force and 100g Acceleration for Packaged Product Testing
Vibration Testing Machine with JIS D1601 Standard 20KN Vibration Force and 100g Acceleration for Packaged Product Testing
Vibration Testing Machine with JIS D1601 Standard 20KN Vibration Force and 100g Acceleration for Packaged Product Testing
Vibration Testing Machine with JIS D1601 Standard 20KN Vibration Force and 100g Acceleration for Packaged Product Testing
Vibration Testing Machine with JIS D1601 Standard 20KN Vibration Force and 100g Acceleration for Packaged Product Testing
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. horizontal and vertical vibration 3 axis high frequency vibration tester is our star products , and we had obtained the CE certification for this machine .
FAQ
Q1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU, DAP, DDP

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

If you need more information about Vibration Tester Equipment With Jis D1601 Standard , please feel free to contact us.
