High Frequency Electrodynamic Vibration Shaker with PC Control 20000N Rated Force and Customized Support
Premium Products
High Frequency Electrodynamic Vibration Shaker with PC Control 20000N Rated Force and Customized Support
1
2
3
4
5
6
Brand Name :ASLI
Place of Origin :Guangdong, China
Model Number :ES-20
MOQ :1
Vibration Method :Sine & Random Vibration
Rated Sine Force :20000N
Rated Random Force :20000N
Frequency Range :3~3500HZ
Max. Acceleration :100g
Rated Speed :2.0m/s
Rated Displacement :51mm
Control Method :PC
Vibration Direction :Vertical Vibration
Power Supply :AC380V
Max. Loading :300Kg
Moving Coil Weight :30Kg
Moving Coil Dimension :Φ320
Axial Resonance Frequency :High
Cooling Effect :Enhanced
Contact Now
High Frequency Vertical And Horizontal Electrodynamics Vibration Testing Machine
Product Description
Electrodynamic Vibration Shaker Application:
We are manufacturer of High Frequency Vibration Test Machine series products, adopted the 'double-magnetic circuit structure',' self-generated skeleton action circles', 'Airborne Support’ and 'roller bearings and linear guidance', 'trunnion isolation’ advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.
Vibration Test Machine Technical Parameters:
Model
Rated Sine
Force (N)
Rated Random
Force (N)
Frequency
Range (Hz)
Rated Acceleration (m/s2)
Rated Speed(m/s)
Rated
displacement
(p-p)mm
Max. Loading (Kg)
moving coil(Kg)
Dimension of
Moving coil(mm)
ES-1
1000
1000
3-3500
400
1.2
25
70
2.5
Φ150
ES-2
2000
2000
3-3500
800
1.6
25
70
2.5
Φ150
ES-2a
2000
2000
3-3500
300
1.6
40
70
8
Φ230
ES-3
3000
3000
3-3500
1000
1.6
25
100
3.5
Φ150
ES-3a
3000
3000
3-3500
400
1.6
40
120
9
Φ230
ES-6
6000
6000
3-3500
1000
1.6
25
180
6.5
Φ230
ES-6a
6000
6000
3-3500
1000
1.6
51
250
12
Φ230
ES-10
10000
10000
3-3000
1000
1.8
51
270
14
Φ240
ES-20
20000
20000
3-3000
1000
1.8
51
300
30
Φ320
ES-30
30000
30000
3-2800
1000
1.8
5l
450
40
Φ450
ES-40
40000
40000
3-2800
1000
1.8
51
500
50
Φ450
ES-50
50000
50000
3-2700
1000
1.8
51
750
50
Φ450
ES-60
60000
60000
3-2700
1000
1.8
51
750
60
Φ450
ES-100
100000
100000
3-2500
1000
1.8
51
1000
90
Φ450
ES-120
120000
120000
3-2200
1000
1.8
51
1100
90
Φ500
ES-160
160000
160000
3-2100
1000
1.8
51
1500
150
Φ600
ES-200
200000
200000
3-2000
1000
1.8
51
2500
200
Φ650
ES-350
350000
350000
3-1700
1000
1.8
51
4500
300
Φ87
lab equipment high frequency vibrating tester with magnesium alloy table Features:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency. 2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational. 3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity. 4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience. 5. Advanced technology move around the system to ensure that the dynamic circle of high reliability. 6. New duct design and enhance the cooling effect. 7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity, improve low-frequency performance.
Technical Parameters of Horizontal Expander:
Technical Parameters of Vertical Expander:

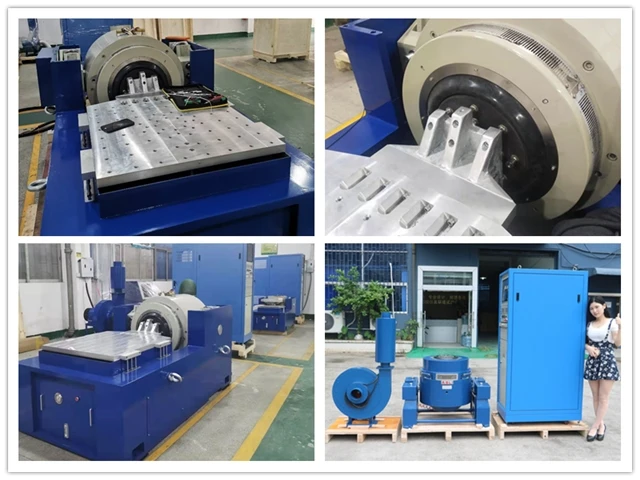

Product Pictures
Packaging & Shipping
Certificate of these the machine:
China official 3rd party calibration report
CE certiification
For the package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK
Vibration Test Machine Packing & Shipping Detail:
Our Services
Our service
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.
Customers' Visit ASLI Company:
Our advantages
1.Professional technology support.
2.Full experience of large numbers containers loading in Chinese sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.
5.We are professional test equipment manufaturer in China with excellent experience and skills, also have best quality products
Exhibition:
Certifications
Company Information
Short introduction about ASLi factory: We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. High Frequency Vertical And Horizontal Electrodynamics Vibration Testing Machine is our star products , and we had obtained the CE certification for this machine .
ASLi main test equipments: Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber), ESS chamber, Walk in stability chamber, Vacuum oven, electrodynamic vibration shaker,mechanical shock tester, environmental combined vibration chamber,etc
FAQ
1.Are your company a trading one or a factory? Factory ,28 years focusing on test instruments field,4 years exporting experience.
2.After an order is placed, when to deliver? Generally about 20 days, If we have finished products, we can arrange shipment within 3 days. (Please be aware that our production lead times depend on specific items and item quantities.)
3.What about the warranty with after - sales services? 12 months warranty.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Relative Product:
Please feel free to contact us if any doubt or needs about High Frequency Vertical And Horizontal Electrodynamics Vibration Testing Machine.
