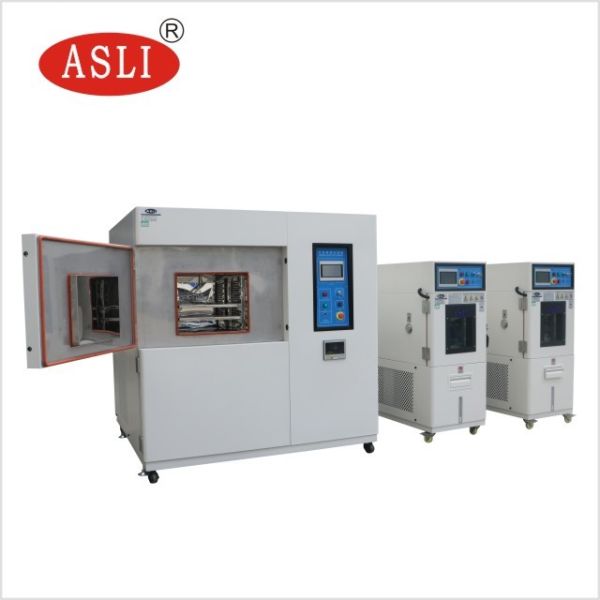

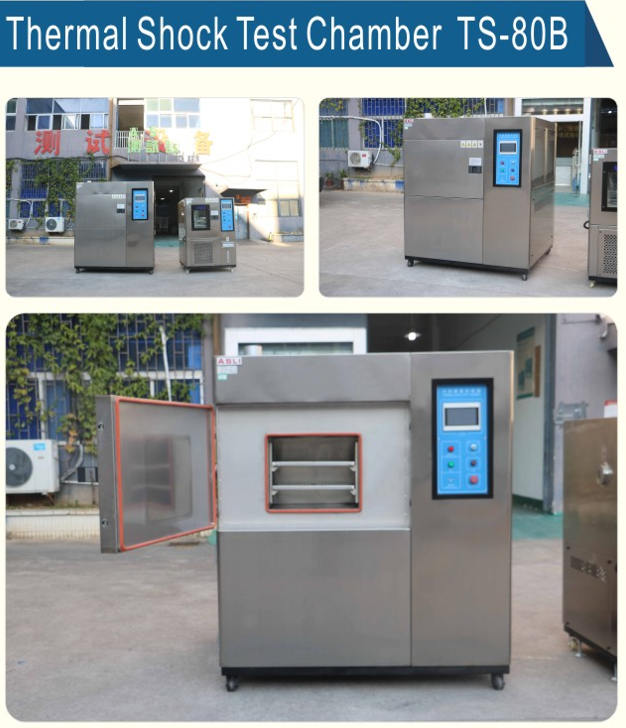

ASLI Brand Climatic Chambers Thermal Shock Chamber

Name: ASLI Brand Climatic Chambers Thermal Shock Chamber
Brand: ASLI
Price: 1 USD

Brand Name : ASLI

Place of Origin : Guangdong, China

Model Number : TS-80-A

MOQ : 1

Internal Dimension : W500*H400*D400mm

Analysis Accuracy : 0.1 Deg C

Temperature Uniformity : +/-2.5 Deg C

Inner Material : SUS304 stainless steel

Testing Door : Single door

Temperature Range : -40°C~+150°C (200°C Optional)

High Temp Range : +60°C~+150°C (200°C Optional)

Low Temp Range : -10°C~-40°C/-55°C/-65°C

Exposure Time : 30Mins

Heating Time : RT~200°C/45mins

Cooling Time : RT~-75°C/100mins

Recovery Time : ≤5min

Conversion Time : ≤5sec

Control Accuracy : ±0.5°C

Power Supply : AC220V/50/60HZ, AC380V/50/60HZ

Contact Now

Product Description

Programmable Thermal Shock Test Boxes is also called hot and cold impact testing machine, hot and cold impact machine, temperature impact test box, used to test the material structure or composite materials, in a moment by very high temperature and very low temperature of the continuous environment some can endure the extent, reflected in the shortest possible time to test its thermal expansion caused by chemical changes or physical damage.

The applicable objects include metals, plastics, rubber, electronic materials, etc., which can be used as the basis or reference for the improvement of their products.

Model

TS-42(A~C)

TS-80(A~C)

TS-150(A~C)

TS-252(A~C)

TS-450(A~C)

Internal Dimension
WxHxD ( mm)

400x350x350

500x400x400

600x500x500

700x600x600

800x750x750

External Dimension
WxHxD (mm)

1400x1800x1400

1550x1950x1550

1600x2000x170

1700x2100x1750

1800x2200x1900

Temperature Range of Testing zone

Type A:-40 °C~+150°C
( 200°C is Optional)

Type B:-55°C ~+150°C
( 200°C is Optional )

Type C:-65°C ~+150°C
( 200°C is Optional)

High temperature Range of Testing zone: +60ºC~+150ºC ( 200ºC is Optional);
Low Temperature Range of Testing Zone: -10ºC~-40ºC / -55ºC / -65ºC

Exposure Time of High/ Low Temperature

Exposure Time of High Temperature: +60°C ~ +150°C (200°C is Optional) 30Mins

Exposure Time of Low Temperature : -10°C~Type A:-40°C / Type B -55°C / Type C -65°C 30Mins

Temperature of Heat-Storing Slot / Heating Time

RT~200°C/About 45mins

Temperature of Cool-storing Slot / Cooling Time

RT~-75°C/ About 100mins

Temperature Recovery Time / Conversion Time

≤5min/≤5sec

Control Accuracy / Distribution Uniformity

±0.5°C/±2°C

Internal and External Material

Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated.

Insulation Material

High temperature resistant , high density , formate chlorine , ethyl acetum foam insulation materials

Mechanics

P.I.D+S.S.R+ Micro-computer balanced temperature control system

Cooling System

Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type)

Security Protection Devices

Non-fuse breaker, high and low pressure protective switch of the compressor , refrigerator
high-pressure protective switch , failure warning system, electronic alarm

Accessories

viewing window(special order)

Compressor

French 'Tecumseh' Brand, Germany Bizer Brand

Power

AC220V ,50/60HZ, AC380V ,50/60HZ

Weight (Approx)

450

600

750

950

1200

Temperature Shock Test Chamber Features

1. Use the aluminum piece to verify the machine load capacity (not plastic load)

2. sensor placement test area rather than the wind crossing, in line with the effectiveness of the experiment

3. The temperature box impact is the test area humidity conforms to the standard requirements

4. can expand the surface temperature of the product to be measured, control the dwell time to shorten the test time

5. can be directly a number of international norms and test conditions

6. Execute low temperature 0 degree impact and save electricity
